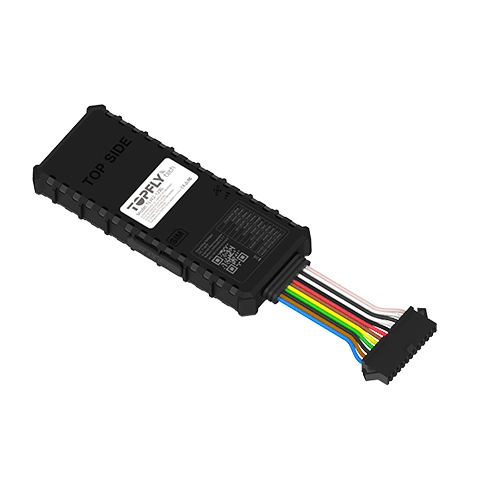

TLW2-12BL cableado tiene múltiples E/S que podrían usarse para detección de encendido, relé, zumbador, botón SOS, sensores de combustible analógicos o sus propios accesorios.
Cuando se trabaja con sensores BLE, puede controlar la temperatura, la humedad, el estado de la puerta, etc. Es un modelo todo en uno para satisfacer sus necesidades de solución personalizada.
Network/Operating Band
FDD: B1/B2/B3/B4/B5/B/8/B12/B13/B18/B19/B20/B25/B28
TDD: B39 (Cat M1 only)
EGPRS 850/900/1800/1900MHz
GNSS Specifications
GNSS Chipset：Qualcomm Gen 8C GNSS receiver
Parallel GNSS：GPS+Glonass+Galileo+Beidou
Receiver Type：33 tracking / 99 acquisitions- channel GNSS receiver
Position Accuracy (CEP)：Autonomous < 2m
Standalone TTFF：Cold start: < 29s
Warm start: < 27s
Hot start: < 1s
Interfaces
Digital Input: 3
Digital Output：2
Configurable Input (Digital/Analog)：3
Indicator LED：Network and GNSS
FOTA：Yes
BLE (Bluetooth Low Energy)：5.0
General Specifications
Waterproof：IP65
Dimensions：102.5mm*42.5mm*12mm (4.04” *1.67” *0.47”)
Weight：55g (1.94oz)
Backup Battery：Li-Polymer 200 mAh/ 3.7V
Operating Voltage：7V to 60V DC
Operating Temperature：-30℃ ~ +80℃ (-22°F ~ 176°F)
Storage Temperature：-40℃ ~ +85℃ (-40°F ~ 185°F)
Air Interface Protocol
Transmit Protocol：TCP, UDP, MQTT, SMS
BLE Accessory Support：Yes
Scheduled Timing/angle/distance Report：Report position and status at preset intervals
External Power Status Alarm：Report when external power is disconnected
Low Power Alarm：Report when backup battery is low
Speeding Alarm：Report when speed exceed the pre-set value
Towing Alarm：From internal 6-axis accelerometer
Remote Control：Remote output control
Network Signal Jamming Detection：Report network jamming
Data Roaming Control：Avoid additional data consumption
Driving Behavior Monitoring：Aggressive driving behavior detection, e.g. harsh braking and acceleration
Crash Detection：Accident data collection for reconstruction and analysis
Certificación
CE, FCC, RCM, IC, E-mark, PTCRB, T-Mobile, AT&T
