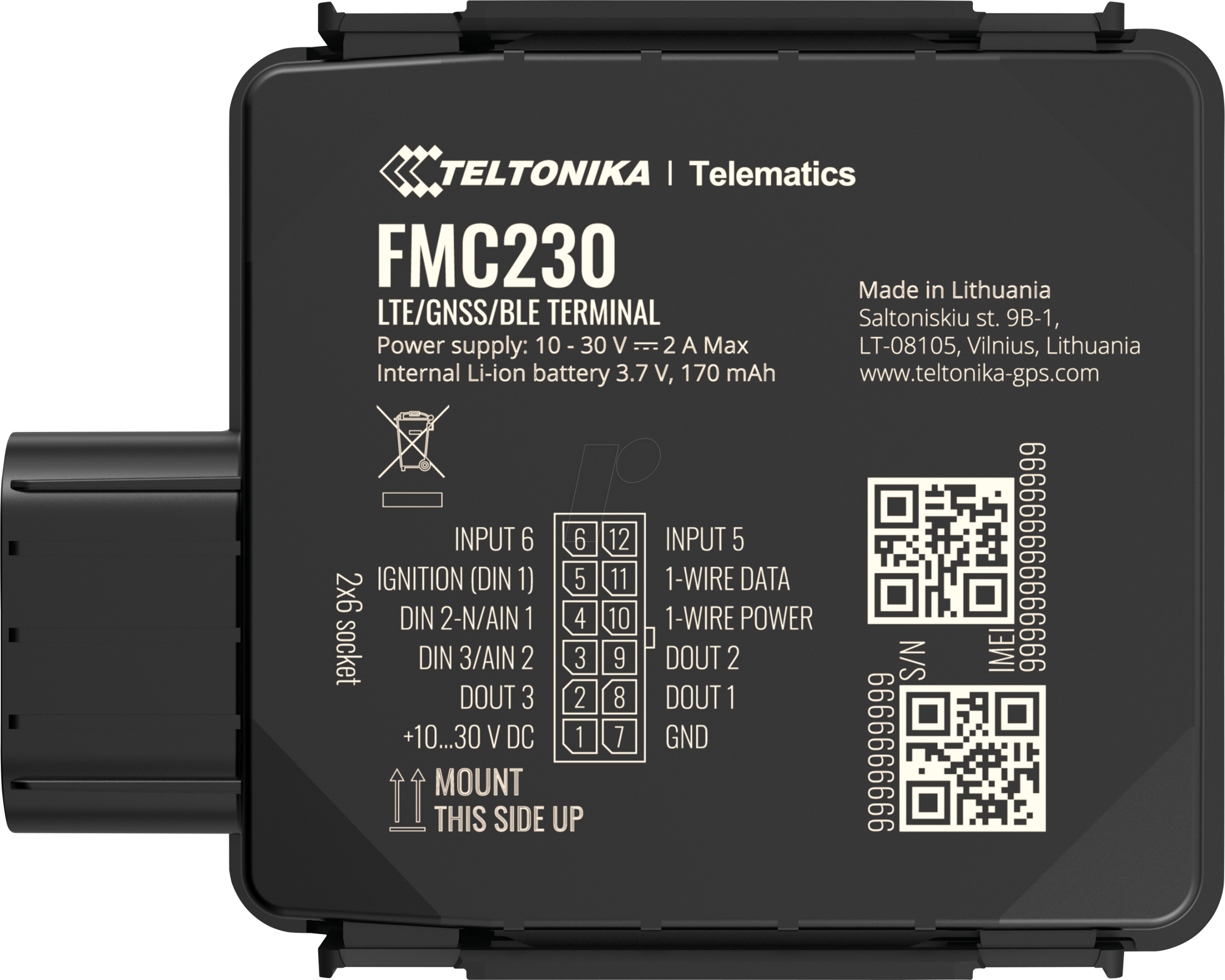

Name FMC230-MBIB0: MeiG SLM320-E with Teltonika TM2500 I FMC230-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology LTE(CAT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Technology LTE Cat 1, GSM
2G bands FMC230-MBIB0: GSM: B2/B3/B5/B8 I FMC230-MCIB0: GSM: B2/B3/B5/B8
4G LTE Cat 1 bands FMC230-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 I FMC230-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40
Data transfer LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) I LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) I GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
Input voltage range 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse 3A, 125V
Power consumption
At 12V < 3 mA (Ultra Deep Sleep)
At 12V < 5 mA (Deep Sleep)
At 12V < 16 mA (Online Deep Sleep)
At 12V < 18 mA (GPS Sleep)
At 12V < 33 mA (nominal with no load)
At 12V < 2A Max. (with full Load / Peak)
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
Dimensions 70,5 x 67,0 x 25,6 mm (L x W x H) I 85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)
Weight 79 g
Operating temperature (without battery) -20 °C to +85 °C
Storage temperature (without battery) -20 °C to +85 °C
Operating temperature (with battery) -20 °C to +60 °C
Storage temperature (with battery) -20 °C to +45 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month I -20 °C to +35 °C for 6 months
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impuls Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 3
Analog Inputs 2
CAN Adapter Inputs 1
1-Wire 1
GNSS antenna Internal High Gain
Cellular antenna Internal GSM High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM or eSIM
Memory 128MB internal flash memory
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Regulatory CE-RED, E-mark, RCM, Anatel (in progress), TRA, CITC, REACH, RoHS
