Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm
Data support
SMS (text/data)
POWER
Input voltage range
10 – 30 V DC with overvoltage protection
Internal fuse
3 A, 125 V
Power consumption
At 12V < 3 mA (Ultra Deep Sleep) At 12V < 5 mA (Deep Sleep) At 12V < 11 mA (Online Deep Sleep) At 12V < 18 mA (GPS Sleep) At 12V < 34 mA (nominal with no load) At 12V < 2A Max. (with full Load / Peak)
Back-up battery
170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
INTERFACE
Digital Inputs
3
Negative Inputs
1 (Digital Input 2)
Impulse Inputs
2 (Digital Input 1, Digital Input 2)
Digital Outputs
3
Analog Inputs
2
CAN Adapter Inputs
1
1-Wire
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM + eSIM
Memory
128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions
65 x 56.6 x 20.6 mm (L x W x H)
Weight
55 g
OPERATING ENVIRONMENT
Operating temperature (without battery)
-20 °C to +85 °C
Storage temperature (without battery)
-20 °C to +85 °C
Operating temperature (with battery)
-20 °C to +40 °C
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
FEATURES
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, *Jamming
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

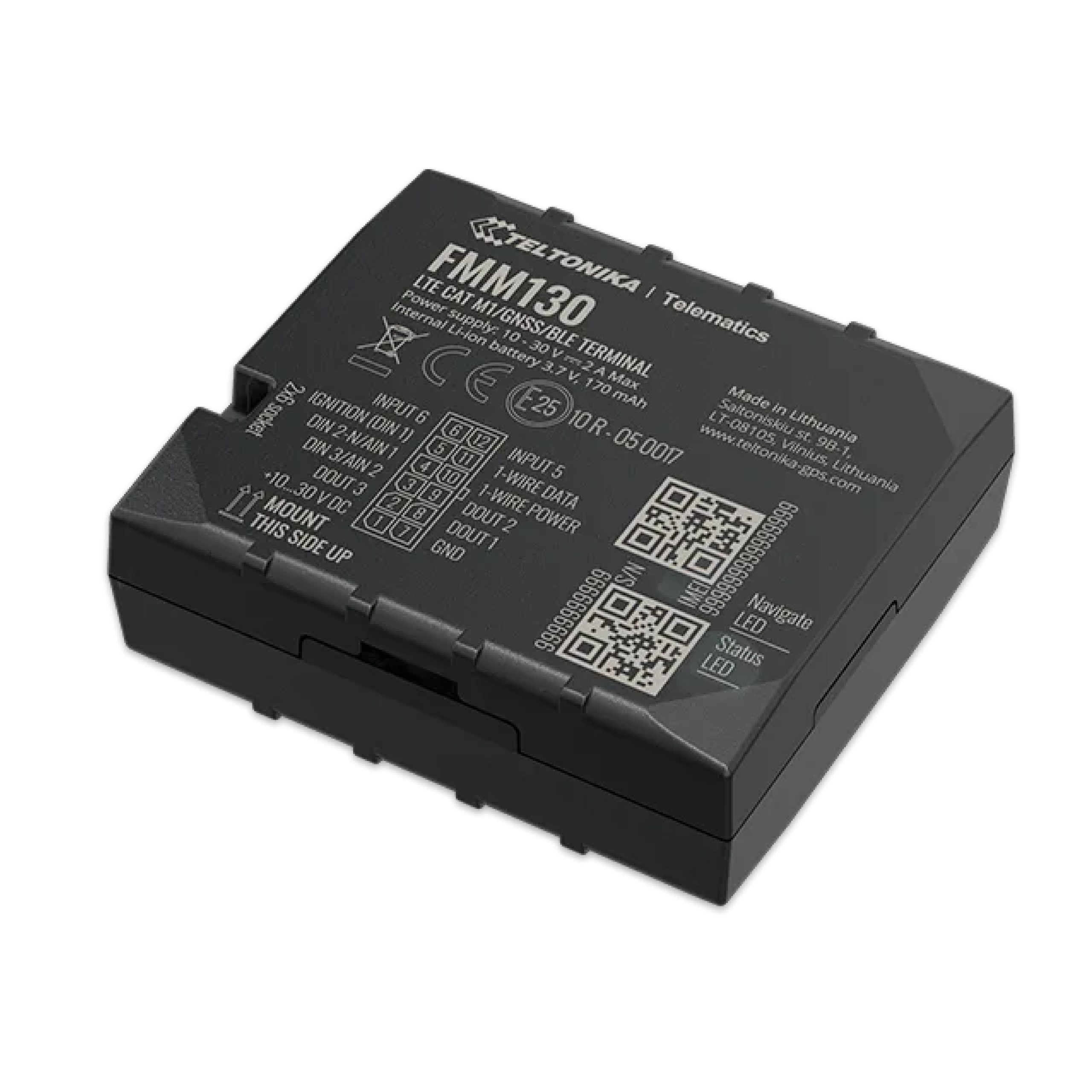

FMM130 es un terminal de seguimiento en tiempo real pequeño y profesional con conectividad GNSS y LTE CAT-M1 / NB -IoT / GSM y batería de respaldo. Dispositivo equipado con módulos GNSS / Bluetooth y LTE CAT-M1 / NB -IoT con respaldo a la red 2G, antenas internas GNSS y LTE, entradas configurables digitales, analógicas y digitales, entradas negativas, entradas de impulsos. Es perfectamente adecuado para aplicaciones donde se necesita la adquisición de la ubicación de objetos remotos: gestión de flotas, empresas de alquiler de automóviles, empresas de taxis, transporte público, empresas de logística, automóviles personales, etc.
